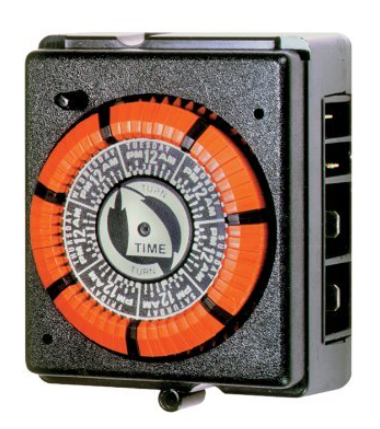

his is a compact 7-Day cycle time clock PB873MKZ designed for spa and filtration systems. It operates at 110V with a 20A rating and 1HP capacity. The clock has a 4-pin plug and includes tabs rated for 3 hours of operation.
Specifications:
- Clock Type: 7-Day Cycle
-
Electrical Rating:
- Voltage: 110V
- Amperage: 20A
- Horsepower: 1HP
- Clock Motor Rating: 125V
- Load Rating: 24-277V
- Plug Type: 4-Pin SPST
- Tab Rating: Each tab is rated for 3 hours
- Clock Diameter (Approx): 2.31 inches
- Overall Dimensions (Approx): 3.375 H x 2.75 L x 1.94 W inches
- Item Weight: 6.4 ounces
