Rebuild Kit; 202 H/HR Wallenstein

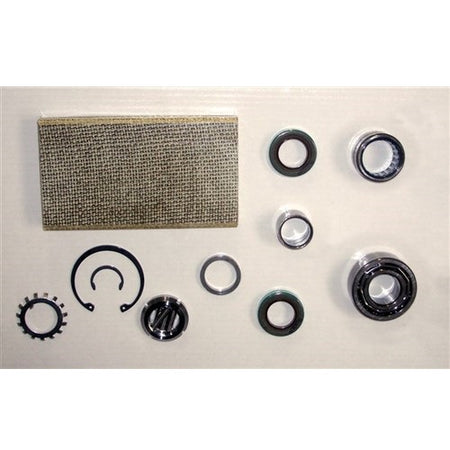

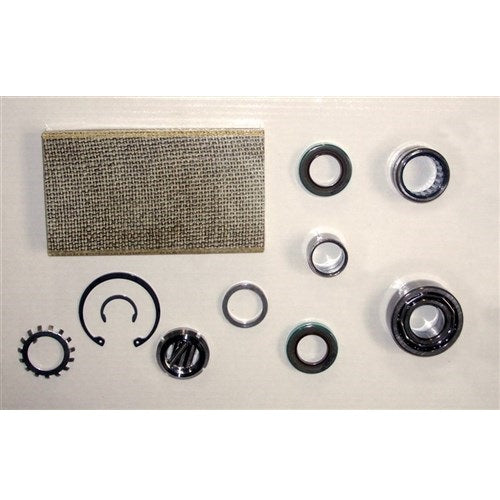

Wallenstein 202 H/HR vacuum pump rebuild kit

Contents

• Description: - Qty - Part #
• Taper Pin #5x1: - 4 - 1000-003
• 80 Valve Bottom Gasket: - 1 - 1000-386
• Flange Gasket: - 2 - 1000-035
• Vane (202 H/HR): - 3 - 2020-012
• Roller Bearing: - 1 - 3020-008
• Bearing Race: - 1 - 3020-009
• Oil Seal Front & Rear: - 2 - 3020-010
• Retaining Ring External: - 1 - 3020-012
• Spacer Ring: - 1 - 3020-018
• Retaining Ring Internal: - 1 - 3020-019
• Ball Bearing: - 1 - 3020-020
• Lock washer: - 1 - 3020-021
• Locknut: - 1 - 3020-022
• Expansion Ring: - 1 - 1000-361

202H/HR
