GeniSys Primary Control; 12VDC; No Delay (00 pre 00 post); 7556A0000U

GeniSys Primary Control; 12VDC; No Delay (00 pre 00 post); 7556A0000U

Regular price
$234.56
Sale price
$234.56
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

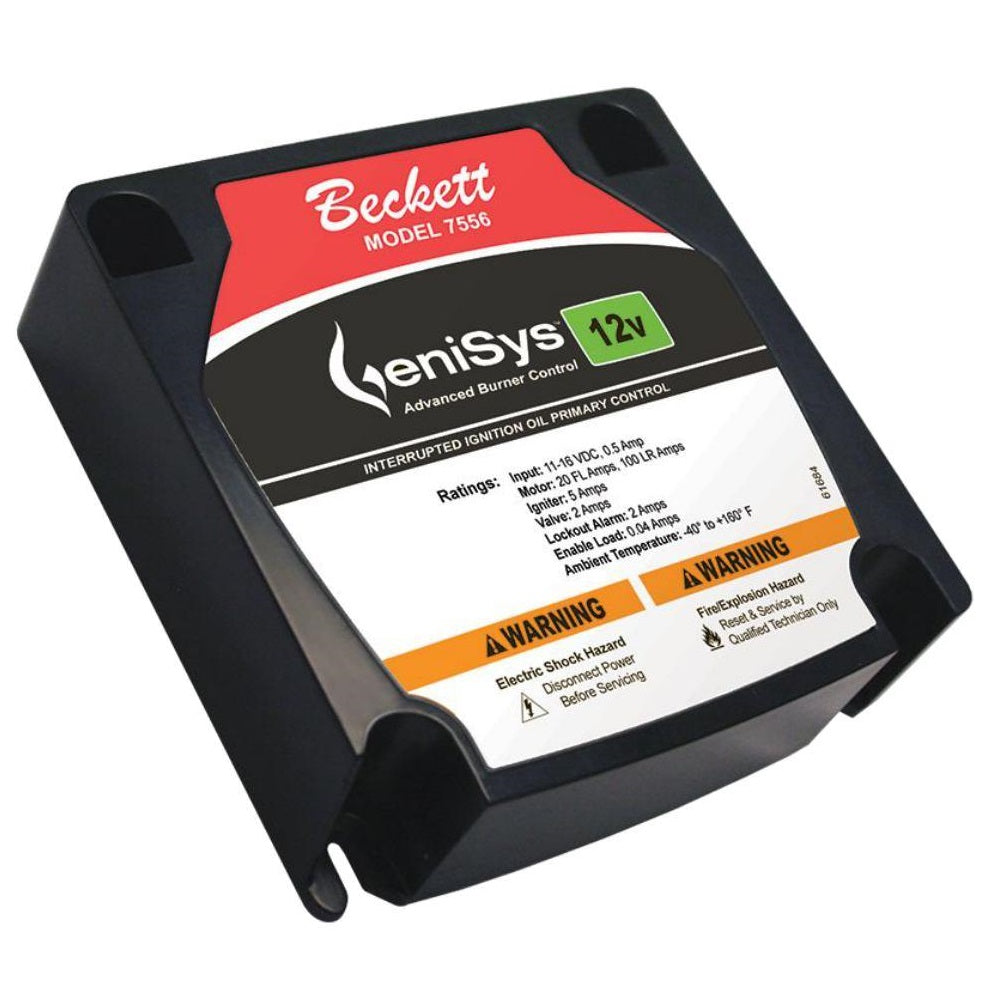

Beckett #7556A0000U. The Beckett GeniSy™ 12 V Advanced Burner Control is a 12 VDC primary safety control for oil burners used on pressure washers, road stripers, crack sealers, hot patchers, and asphalt distributors, to name a few examples. The GeniSys™ 12 V is used with a suitable cad cell flame sensor to control the oil burner motor, igniter, and optional solenoid valve. It can provide interrupted or intermittent duty ignition.

  • New Feature Programmable valve-on delay and motor-off delay provides chamber cooling after call for heat
  • Valve-on delay / motor-off delay (Field programmable with Beckett’s Contractor Tool)
  • Epoxy potted for moisture resistance
  • Welded relay protection with redundant motor relays
  • High ambient temperature rating
  • Alarm output enables visual or audio indication of flame failure and lock out condition
  • Interrupted ignition
  • Relight function
  • Fused protection
  • Communication port
