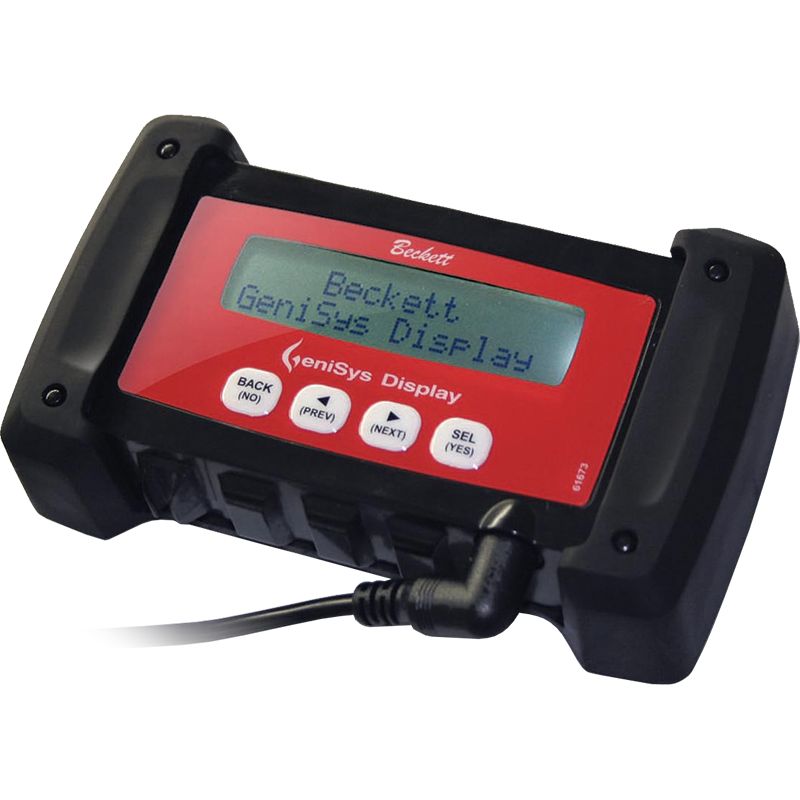

GeniSys™ Contractor Tool

The Contractor Tool is designed as a portable diagnostic tool to help technicians program and troubleshoot Beckett oil primary controls. The screen shows current burner status, control timings, and burner cycle history. The programming mode allows a technician to customize both the pre-time and post-time settings

Features & Benefits

• 32 character backlit alphanumeric display
• Sealed pushbutton keypad
• Low voltage operation
• Continuous real-time cycle monitoring
• Continuous cad cell resistance reading
• Continuous AC line voltage readout
• Real-time error notification
• Customizable pre-time (valve-on delay) & post-time (Motor off delay)
• 15 cycle history monitoring
• 5-year warranty
• Customizable lockout service message

Specifications

• Voltage: 5 VDC
• Current: 25 mA maximum display current
• Storage Ambient Temperature: -22°F to +150°F (-30°C to +65°C)
• Operating Ambient Temperature: 0°F to +150°F (-18°C to +65°C)
• Moisture: 5-85% RH, non-condensing and non-crystallizing

52082U
