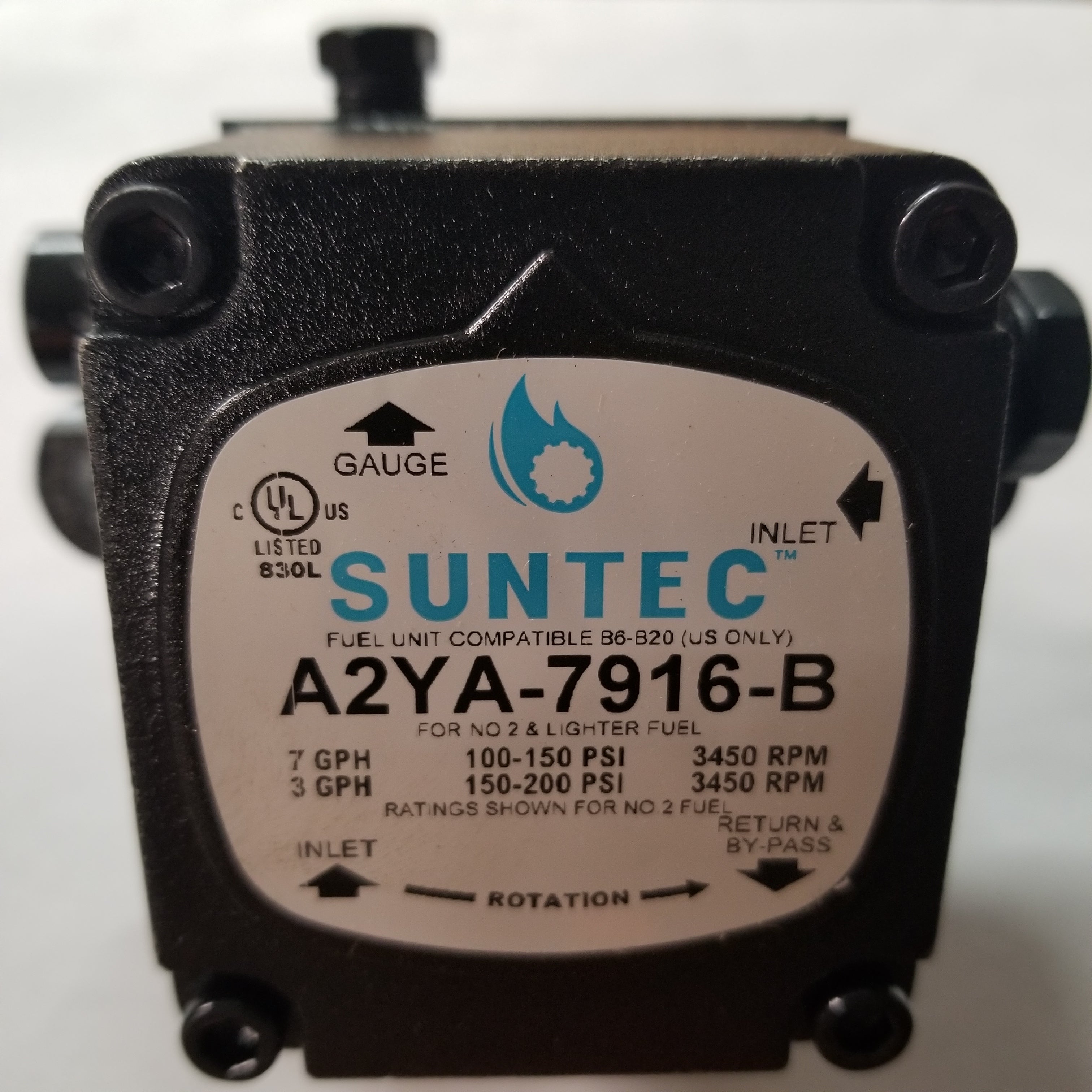

Beckett PF226N2U Suntec A2YA-7916B

• 7GPH - 100-150psi - 3450rpm
• 3GPH - 150-200psi - 3450rpm
• For number 2(#2) or lighter fuel
• Mounting Flange mounting, any position
• Connection threads Inlet Nozzle outlet Pressure gauge port Bleeder valve port
• ¼" NPTF, ⅛" NPTF, ⅛" NPTF, ⅛" NPTF
• Valve function Pressure regulation
• Cut-off Diaphragm
• Strainer 7 GHP
• ⁵∕₁₆" Shaft
• By-pass plug not inserted in return port, for one pipe system. To be inserted in return port with a ⁵∕₃₂" Allen key for two-pipe system
• Nozzle pressure range 100 - 200 psi
• Delivery pressure setting 100 psi
• Oil temperature 50-115℉
• Inlet and return pressures 10 psi max. NFPA limits pressures to 3 psi max
• Suction height single pipe: 6" Hg max. vacuum, Two-pipe: 12" Hg max. vacuum, to prevent air separation from oil
• Power consumption 80W @100 psi 125W @150 psi
• Rated speed 3450 rpm max.
