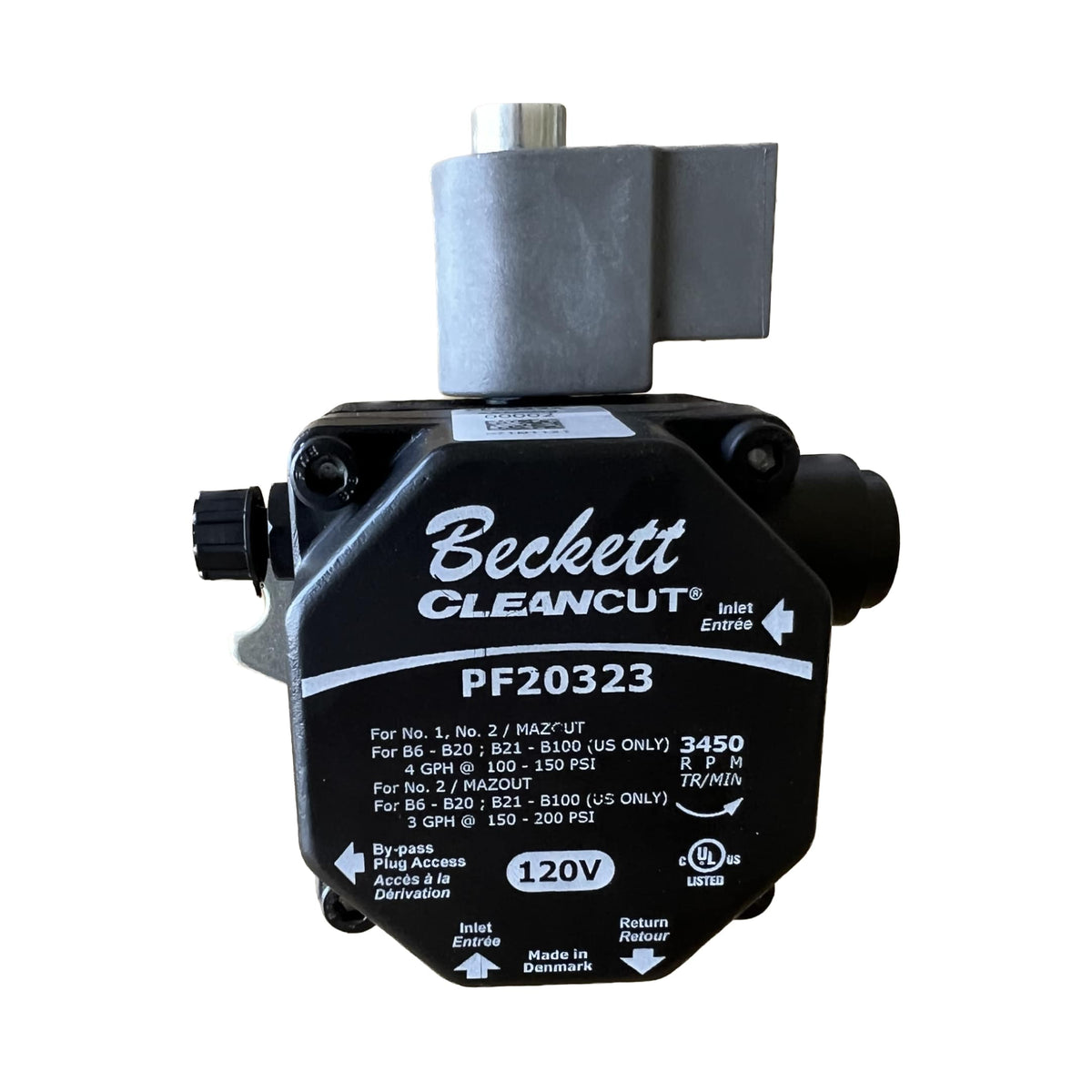

CleanCut Oil Pump
The Beckett family of CleanCut® pumps was developed to combine the benefits of solenoid valve control of fuel to the nozzle and the superior lift capabilities of traditional American pumps. The CleanCut pump has established a reputation as a rugged and reliable component for modern heating systems. Now UL Listed for fuels up to 100% biodiesel (B100) the CleanCut pump continues to set the standard of the industry.
Hydraulic Data/Solenoid Valve
- Nozzle Pressure: 100 – 200 psi
- Factory Ste Pressure: 100 psi
-
Operating Fluids:
- #2 & lighter fuel oils
- Viscosity 1.4 – 12 cSt
- 0 – 25°C / 32 – 77°F in the pump
- Inlet pressure: 10 psi max.
- Return pressure: 10 psi max.
-
Suction height:
- One pipe: 8′ max.
- Two pipe: 14′ max.
- Rate speed: 3600 rpm max.
- Breakaway torque: 36 in.-oz. max.
-
Voltage:
- 24, 110-120 or 200-240 VAC, 50*/60 Hz (*50 Hz not UL approved)
- 12 VDC
- Power consumption: 9 watts
- Ambient temperature: 46°C / 115°F max.
- Maximum pressure: 200 psi
- Certification: UL, CUL
PF203N2U
